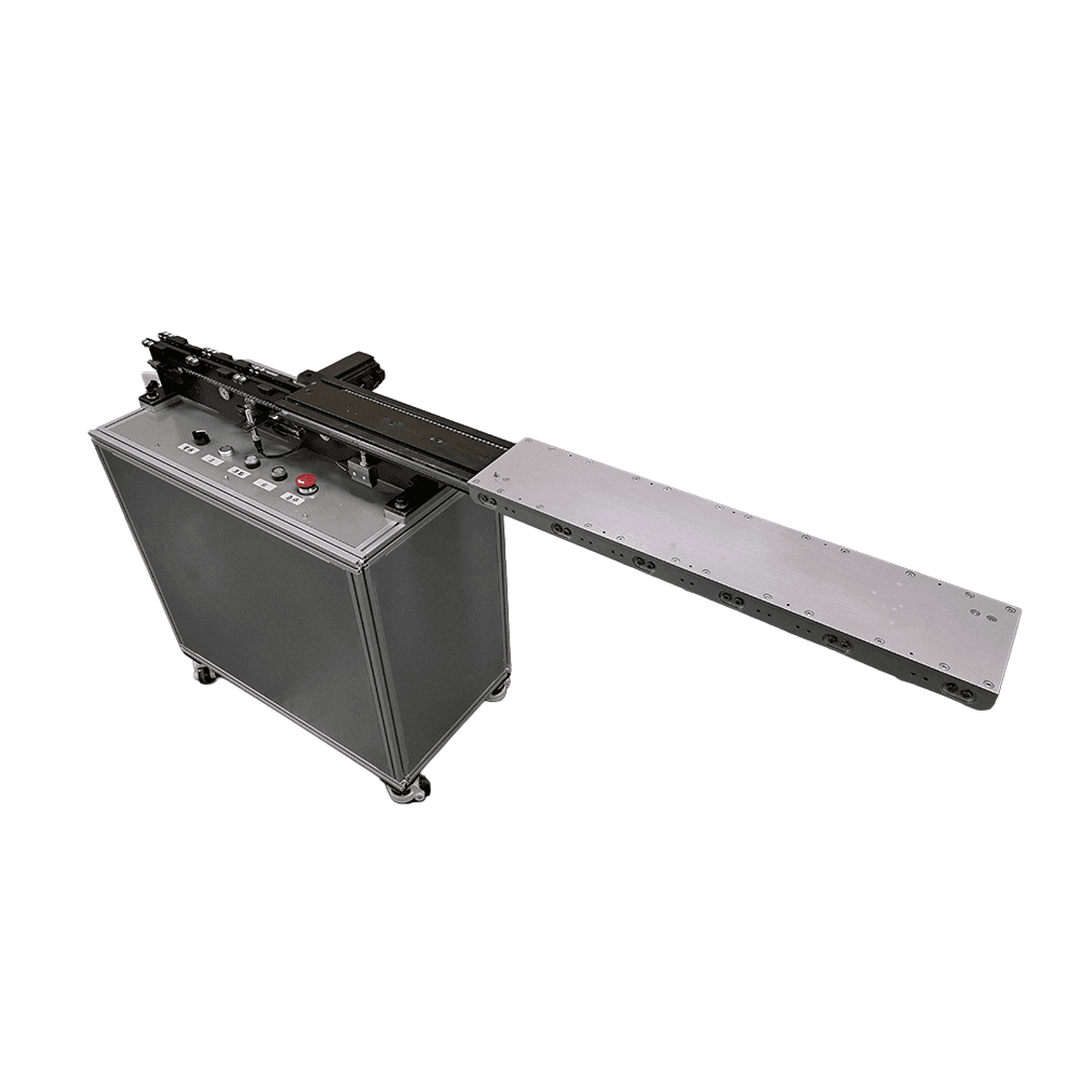

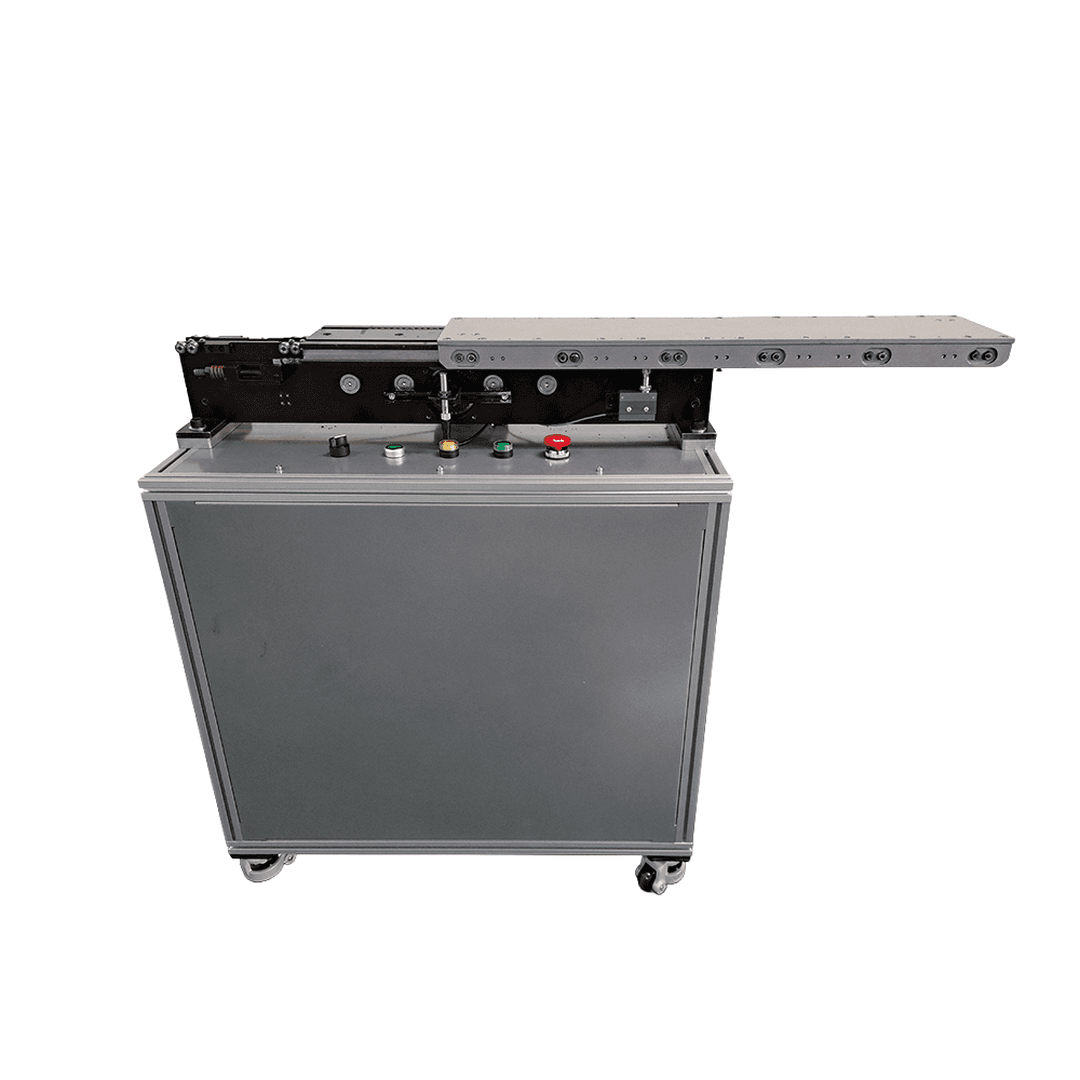

Three-Dimensional Telescopic Forklift
Product Description
- High-Strength Steel Construction: Ensures durability and stability.
- Three-Section Design: Provides greater flexibility and operational range, meeting the requirements of deep racks and specialized operations.
- Maximum Load Capacity: Up to 50 kg loading capacity, suitable for handling various heavy items.
- High Efficiency: Improves handling efficiency and reduces labor costs.
- Flexibility: The three-section design allows for smooth operation in tight spaces.
- Durability: Specially treated steel provides excellent corrosion resistance and wear resistance.
Specification
| Model | Unit | LW1000 |
|---|---|---|
| Drive System | — | GearRack + Chain |
| Max Load | Kg | 50 |
| Fork Length | mm | 800 |
| Fork Height | mm | 750 |
| Max Stroke | mm | 1000+30 |
| Platform Width | mm | 172 |
| Loaded Speed | m/s | ≦0.8 |
| Unloaded Acceleration | m/s2 | 0.5 |
| Unloaded Deflection | mm | 1 |
| Loaded Deflection | mm | 3 |
| Precision | mm | ± 1.5 |
| Travel Switch | — | IME |
Applications
Where this product is typically used.
Warehousing and Logistics Center
Suitable for warehouses, logistics centers, localized production factories, and logistics equipment manufacturing environments.
Dimensional Specifications
Download JPG

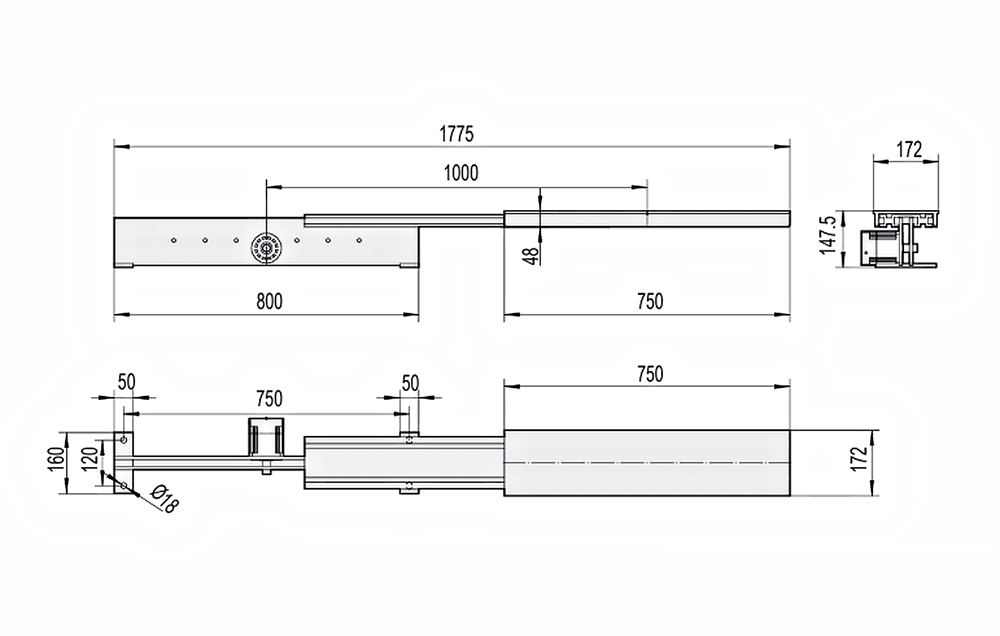

LM Series dimensional drawing. Unit: mm.
LM Dimensions
| Dimension | Value |
|---|---|
| Overall length | 1775 mm |
| Fixed section length | 800 mm |
| Telescopic section length | 1000 mm |
| Usable stroke | 750 mm |
| Body height | 172 mm |
| Mounting height | 147.5 mm |
| Mounting hole | Ø18 mm |
