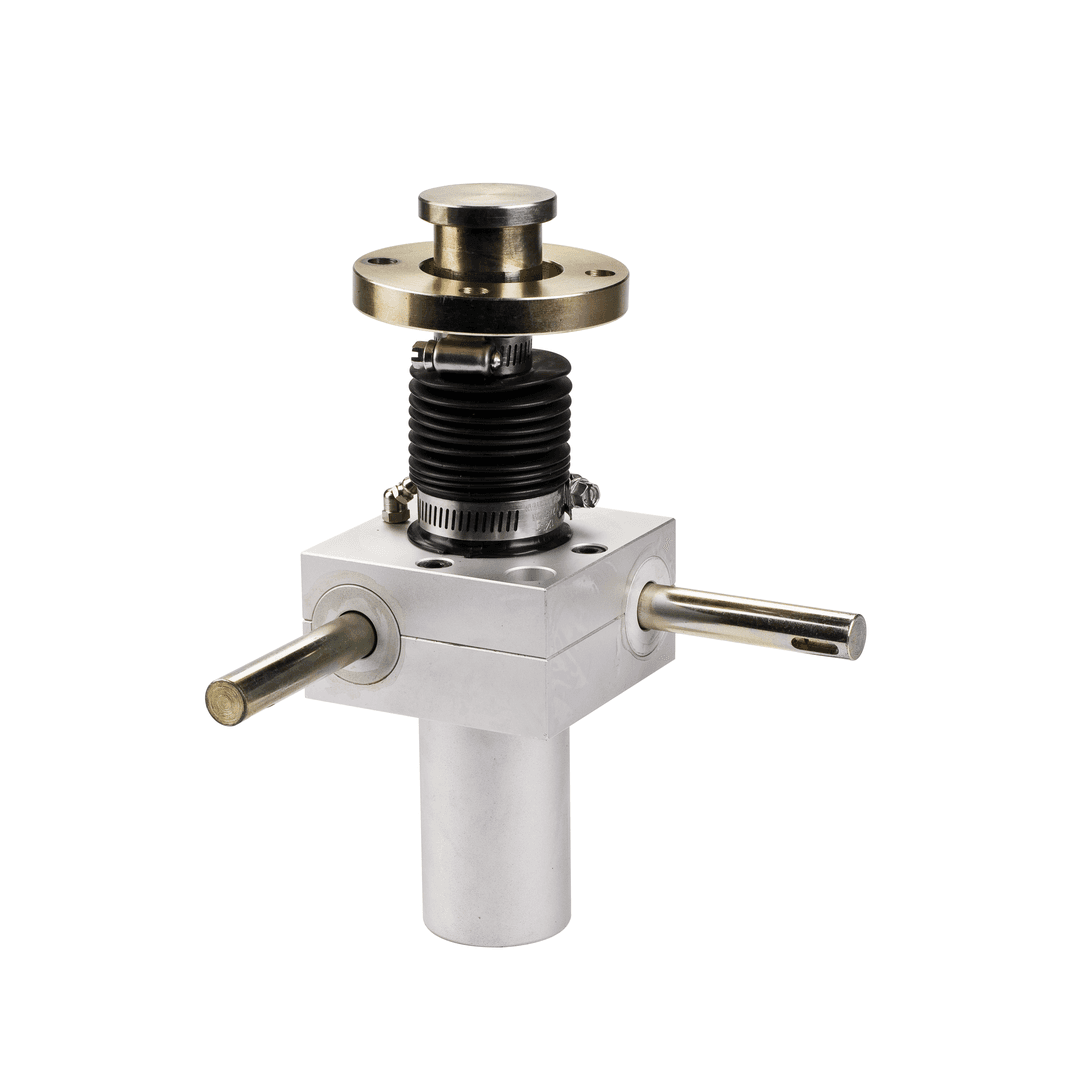

Lifting System-PIS Series
Product Description
Feature
- High speed: Moving fast, can move 4000m/s.

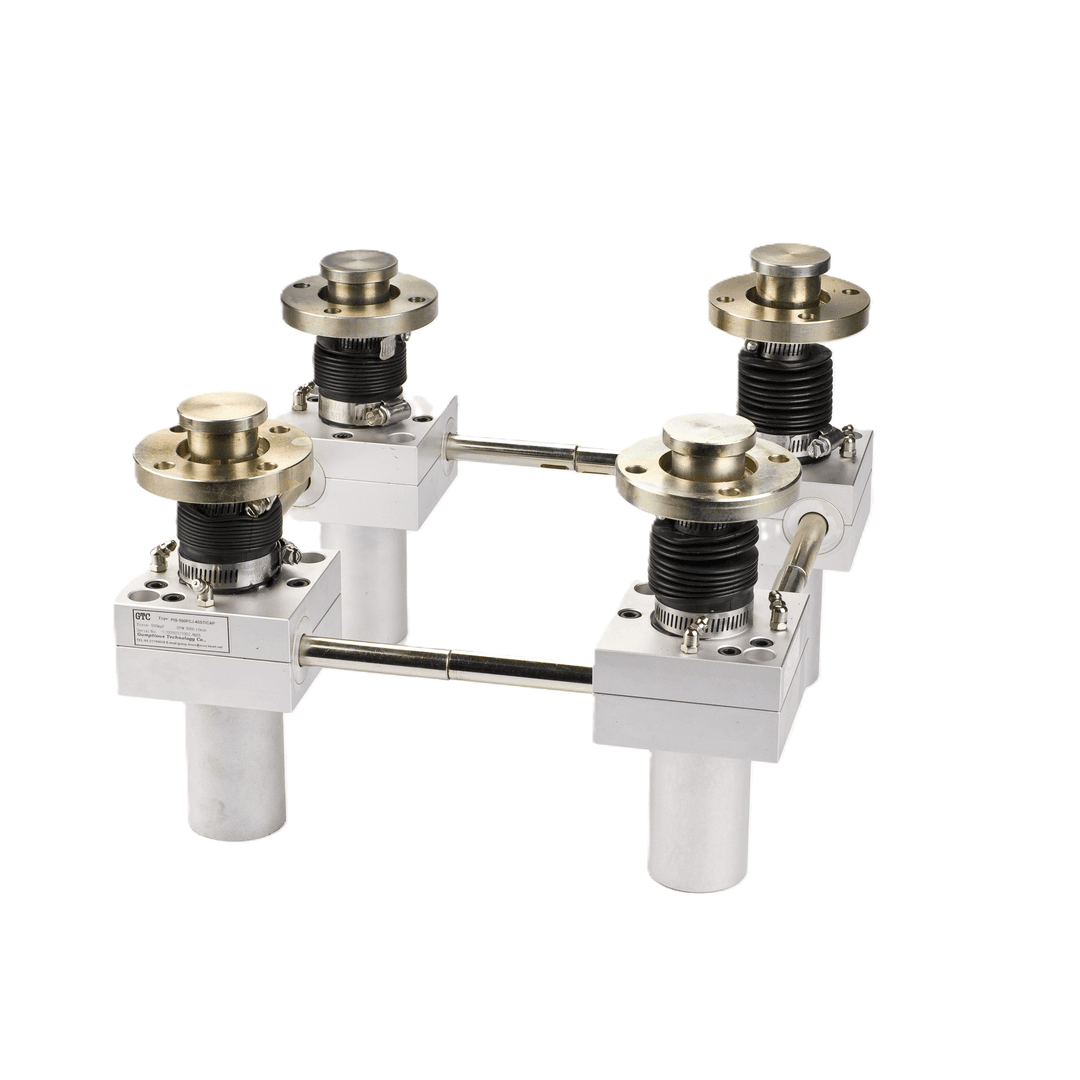

- Fast reaction: Responsive, easy to install, two or four units moving simultaneously.
- High efficiency: Linear motion, the axis will not rotate.
- Stroke length up to 1,000 mm, with customizable ranges available for specialized applications.
Specification
| Model / Specification | Unit | PIS-500 | |||||
|---|---|---|---|---|---|---|---|
| Gear Module / Number of Teeth | 1.5/18 Teeth | ||||||
| Max. Contact Frequency of Single Tooth | 5*10⁷ | ||||||
| Pitch Circle Diameter | mm | 27 | |||||
| Circumference Limited Length | mm | 84.82 | |||||
| Effective Stroke | mm | 40 | 60 | 170 | 270 | 370 | 470 |
| Single Group / Quad Group Max. Thrust | kg | 300-500 | 300-500 | 252-420 | 240-400 | 180-300 | 108-180 |
Applications
Where this product is typically used.
Lifting System-PIS Series
Used in various lifting applications such as synchronous lifting mechanisms, touch panel bonding equipment, and panel lifting.

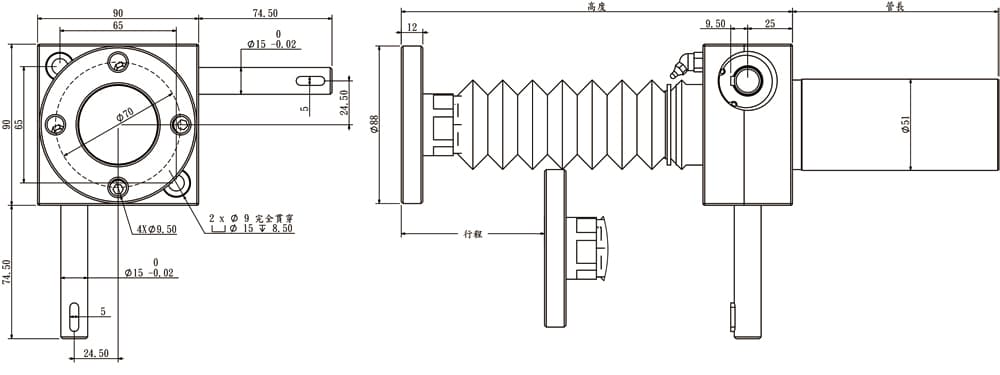

Dimensional Specifications
PIS Dimensions
| Dimension | ||||||
|---|---|---|---|---|---|---|
| Stroke (mm) | 40 | 60 | 170 | 270 | 370 | 470 |
| Height (mm) | 180 | 200 | 315 | 429 | 543 | 659 |
| Tube Length (mm) | 85 | 85 | 215 | 321 | 415 | 515 |
