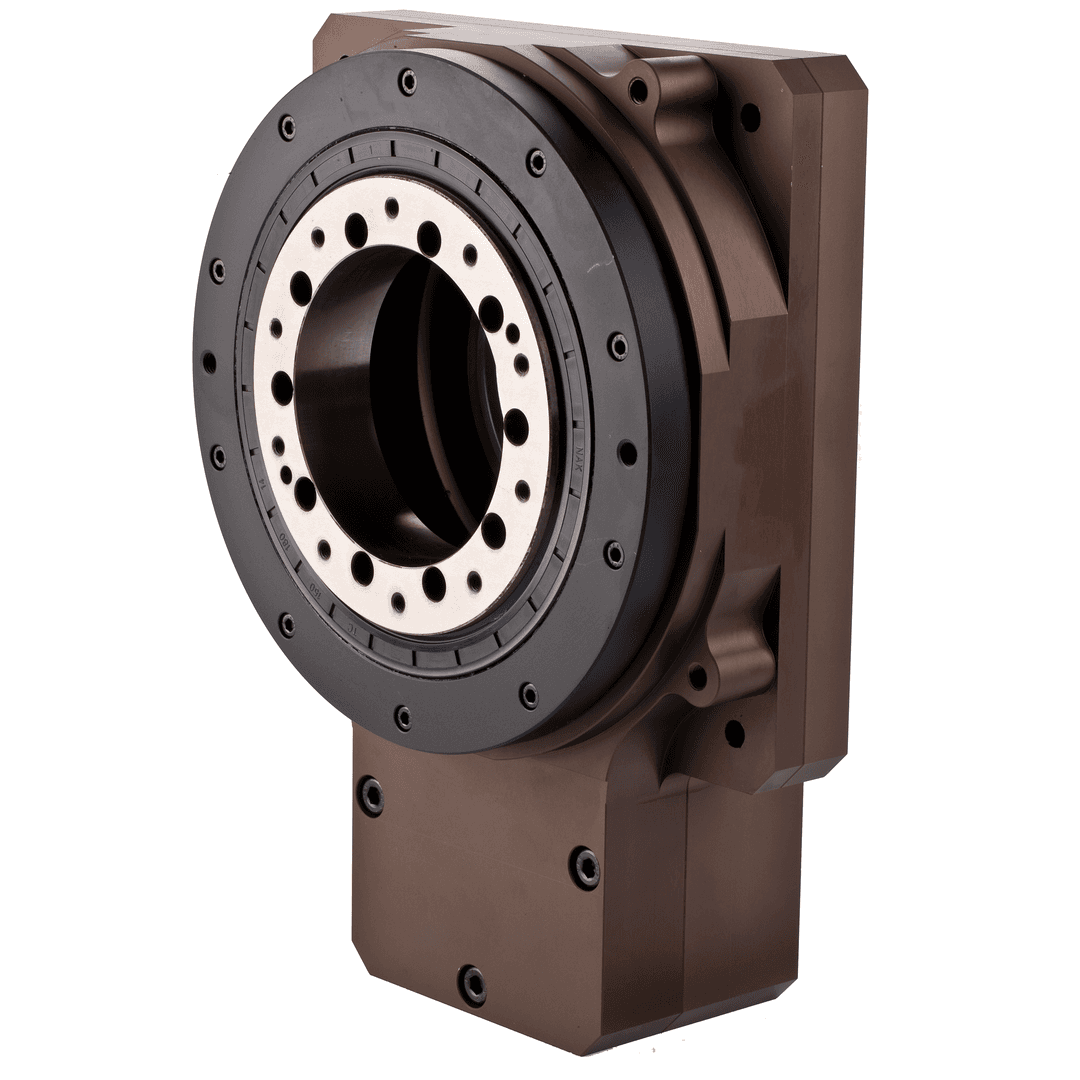

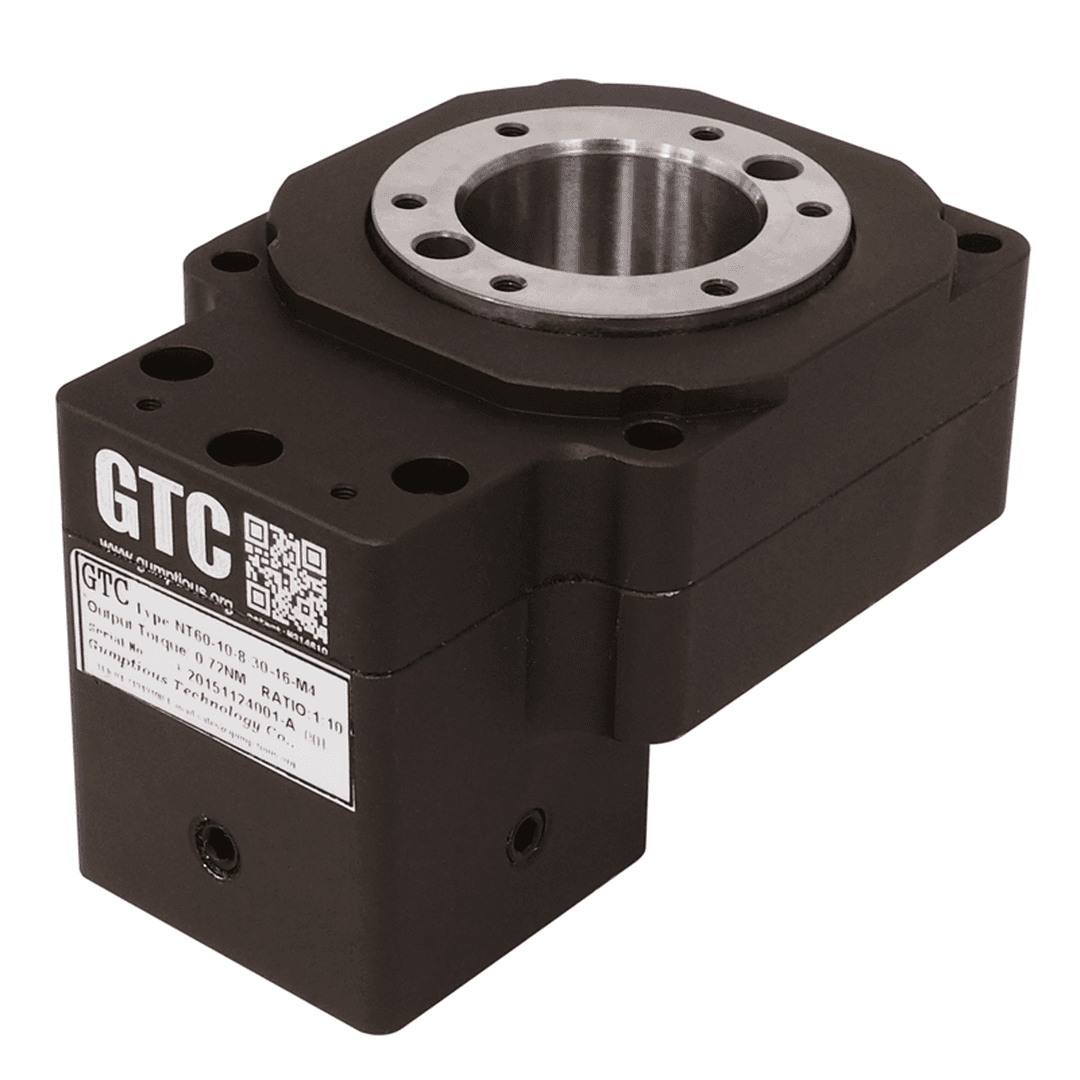

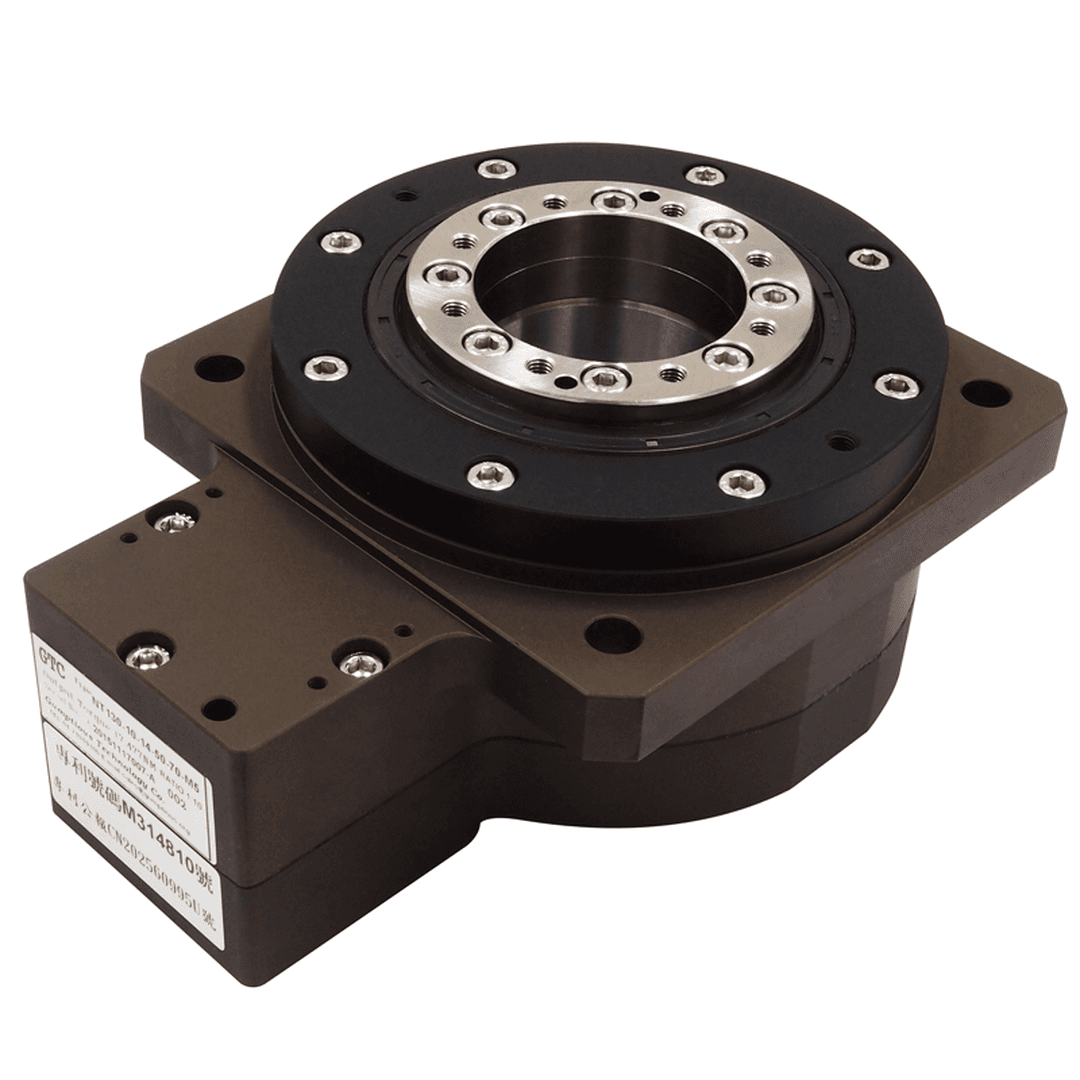

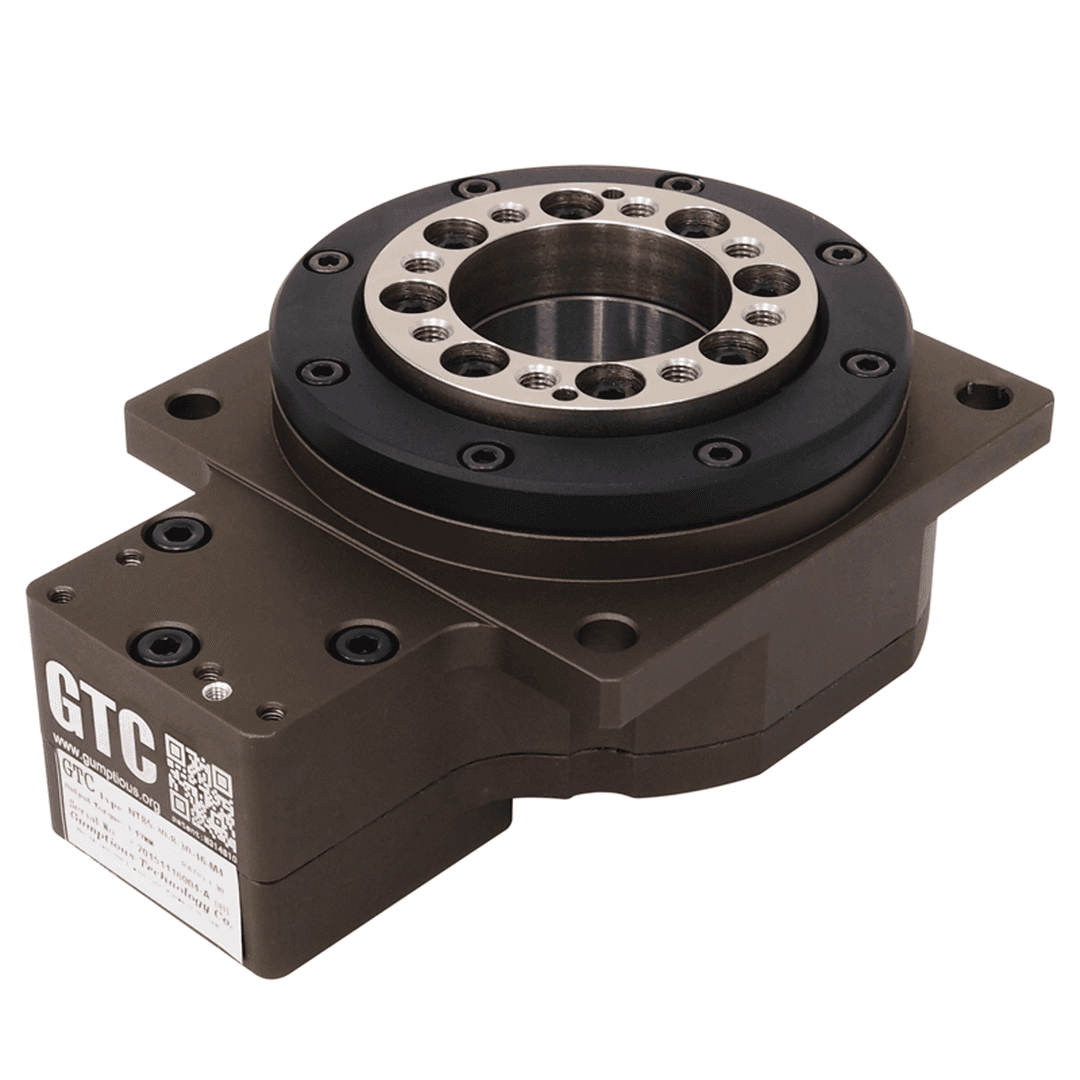

Hollow Rotary Actuator - NT Series
Product Description
- Direct attachment with simple and reliable design.
- Large hollow rotary table for concise wiring and piping.
- Accurate and fast positioning. Able to quickly position inertial load.
- Repeat origin returns easily. Save you the trouble of designing and perchance new parts.
- Servomotor gearbox.
Feature
- Max Backlash of 30 arc-seconds.
- Large hollow rotary flange with a hollow bore for wiring or shafts.
- Hollow bore driven by your servo motor via a large helical ring gear integrated into a rotating flange. Provides smooth, accurate and fast positioning and indexing with high positional accuracy, rigidity and heavy axial load capacity.
- Flange rotates on a precision, high-capacity crossed-roller bearing.
- Larger reduction ratios are achievable by inputting through a planetary or right-angle gearhead.
- Standard crossed-roller bearings - reliable quality you can trust.
Specification
| Model / Specification | NT60 | NT85 | NT130 | NT200 | NT230 | NT280 | NT320 | NTW700 | |
|---|---|---|---|---|---|---|---|---|---|
| Rated Output Torque | Nm | 3.72 | 4.99 | 50 | 65 | 85 | 90 | 140.6 | 2918 |
| Max. Acceleration Torque | Nm | 3x continuous output torque | 8756 | ||||||
| Emergency Stop Torque | Nm | 3.4x continuous output torque | 9924 | ||||||
| Allowable Input Speed | rpm | 3000 | 3000 | 3000 | 600 | 600 | 600 | 600 | 1000 |
| NT Ratio | i | 10 | 30 | 10 | 10 | 10 | 10 | 10 | 150~500 |
| Max. Allowable Backlash | Arc-sec | 300 | 30 | 30 | 30 | 30 | 30 | 30 | <60 |
| Max. Moment of Inertia | Nm | 2.94 | 10 | 82.32 | 140 | 646.45 | 935.9 | 3402 | 15115 |
| Max. Radial Force (Vertical) | N | 294 | 490 | 1960 | 6801 | 8183 | 1800 | 31500 | 55505 |
| Max. Axial Force / Radial Force | N | 147 | 245 | 980 | 6801 | 4091.5 | 4900 | 15750 | 88259 |
| Rated Life | H | 10,000 | |||||||
| Noise Level | dB(A) | 65 | 65 | 67 | 75 | 75 | 85 | 85 | 65(r.p.m1000) |
| Operating Temp. Range | -10°C to +40°C ambient / -90°C max. working temp. | ||||||||
| Lubrication | Lifetime lubrication (synthetic grease) | ||||||||
| Protection Level | IP54 | ||||||||
| Reducer Inertia | Kg*cm2 | 0.03 | 0.02 | 0.2 | 3.6 | 2.3 | 4.8 | 20 | 10.19 |
| Full-Load Efficiency | % | 80% | 68% | ||||||
| Weight | kg | 0.6 | 0.95 | 3.6 | 13.2 | 16.8 | 22.5 | 28.1 | 530 |
| No-Load Torque | Nm | 0.05 | 0.05 | 0.51 | 0.7 | 1.666 | 1.96 | 2.401 | 12 |
Applications
Where this product is typically used.
Waterjet Cutting Machine
Supports accurate rotary positioning and reliable hollow-axis motion in waterjet cutting machines.
Plasma Grooving Machine
Supports stable rotary positioning and hollow-axis integration in plasma grooving machines.

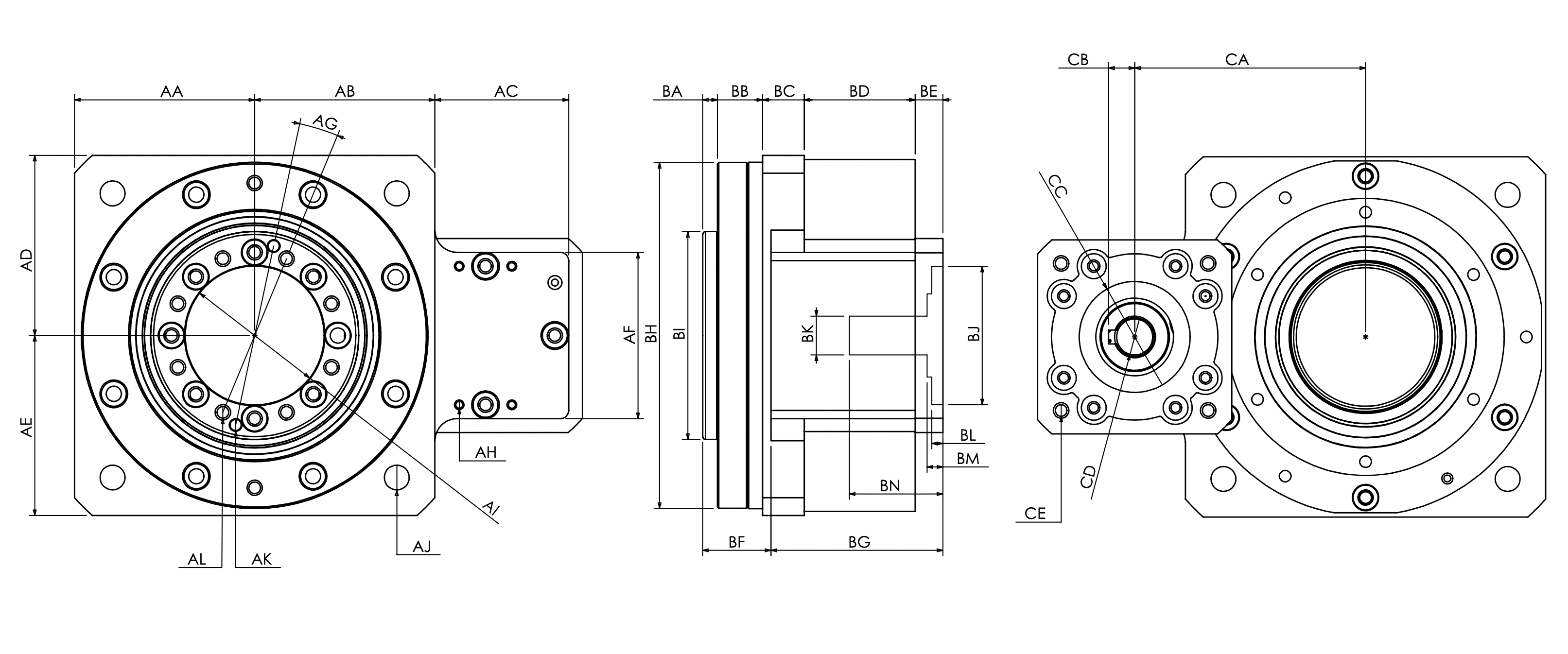

Dimensional Specifications
NT Dimensions
| Specification / Model | NT60 | NT85 | NT130 | NT200 | NT230 | NT280 | NT320 |
|---|---|---|---|---|---|---|---|
| AA | 30 | 42.5 | 65 | 100 | 117.5 | 140 | 160 |
| AB | 30 | 42.5 | 65 | 100 | 117.5 | 140 | 160 |
| AC | 25 | 33.54 | 48.29 | 73.71 | 97.5 | 75 | 95.97 |
| AD | 30 | 42.5 | 65 | 100 | 117.5 | 140 | 160 |
| AE | 30 | 42.5 | 65 | 100 | 117.5 | 140 | 160 |
| AF | 40 | 42 | 60 | 140 | 130 | 130 | 148 |
| AG | 90° | 9.5° | 10.5° | 15° | 9° | - | 9° |
| AH | 2*M2*0.45 Depth5 | 4*M3 Depth6 | 4*M3 Depth6 | Accessory Kit | 2*M5 Depth10 | - | Accessory Kit |
| AI | Ø28 | Ø35 | Ø50 | Ø80 | Ø105 | Ø130 | Ø240 |
| AJ | 2*Ø4.5 P.C.D 70.71 | 2*Ø6.6 P.C.D 100 | 2*Ø9 P.C.D 145 | 4*Ø11 P.C.D 176 | 4*Ø9 P.C.D 280 | 4*Ø17.5 Through P.C.D 338 | 4*Ø17.5 P.C.D 380 |
| AK | 2*Ø5 Depth6 P.C.D 36 | 2*Ø3 Depth6 P.C.D 50 | 2*Ø4 Depth8 P.C.D 66 | 2*Ø6 Depth10 P.C.D 176 | 2*Ø6 Depth12 P.C.D 130 | - | 2*Ø8 Depth10 P.C.D 240 |
| AL | 6*M3*0.5 Depth8 P.C.D 38 | 8*M5 Depth10 P.C.D 44 | 8*M5*0.8 Depth10 P.C.D 60 | 12*M6*1.0 Depth12 P.C.D 170 | 10*M6 Depth12 P.C.D 130 | 20*M6*1.0 Depth12 P.C.D 158 | 20*M8*1.25 Depth16 |
| BA | 2 | 3 | 5.3 | 13 | 4 | 10 | 3 |
| BB | 3 | 13 | 16.3 | 18.5 | 19 | 20 | - |
| BC | 29 | 7 | 15 | 56 | 37 | 38 | 20 |
| BD | - | 22 | 40 | - | 34 | 37 | - |
| BE | 22.5 | 8 | 5 | 61.5 | 35 | 53.5 | 82 |
| BF | 5 | 26 | 24.6 | 31.5 | 36 | 37 | 28.6 |
| BG | 51.5 | 37 | 57 | 117.5 | 93 | 121.5 | 127.4 |
| BH | Ø65 | Ø80 +0/-0.03 | Ø125 +0/-0.04 | Ø190 +0/-0.05 | Ø230 +0/-0.05 | Ø270 +0/-0.05 | - |
| BI | Ø45 | Ø56 +0/-0.03 | Ø75 +0/-0.03 | - | Ø150 +0/-0.04 | Ø185 +0/-0.05 | Ø259.5 |
| BJ | Ø30 | Ø30 | Ø50 | Ø190 | Ø110 | Ø110 | Ø114.3 |
| BK | Ø8 | Ø8 | Ø14 | Ø19 | Ø24 | Ø24 | Ø35 |
| BL | 4 | - | 4 | 7 | 12 | - | - |
| BM | 4.5 | 3.5 | 5.7 | 7 | 13 | 12 | 5 |
| BN | 26 | 27.7 | 33.7 | 49 | 60 | 60 | 49.5 |
| CA | 35 | 55.04 | 83.29 | 128.71 | 150 | 150 | 165.97 |
| CB | 5.4 | 5.4 | 9.4 | - | 15.3 | 15.8 | - |
| CC | Ø30 | Ø30 | Ø50 | Ø70 | Ø110 | Ø110 | Ø114.3 |
| CD | Ø8 | Ø8 | Ø14 | Ø19 | Ø24 | Ø24 | Ø35 |
| CE | 4*M4*0.7 Depth8 P.C.D 46 | 4*M4*0.7 Depth8 P.C.D 46 | 4*M5*0.8 Depth10 P.C.D 70 | 4*M6 Depth12 P.C.D 90 | 4*M8 Depth16 P.C.D 145 | 4*M8*1.25 Depth16 P.C.D 145 | 4*M12*1.75 |
